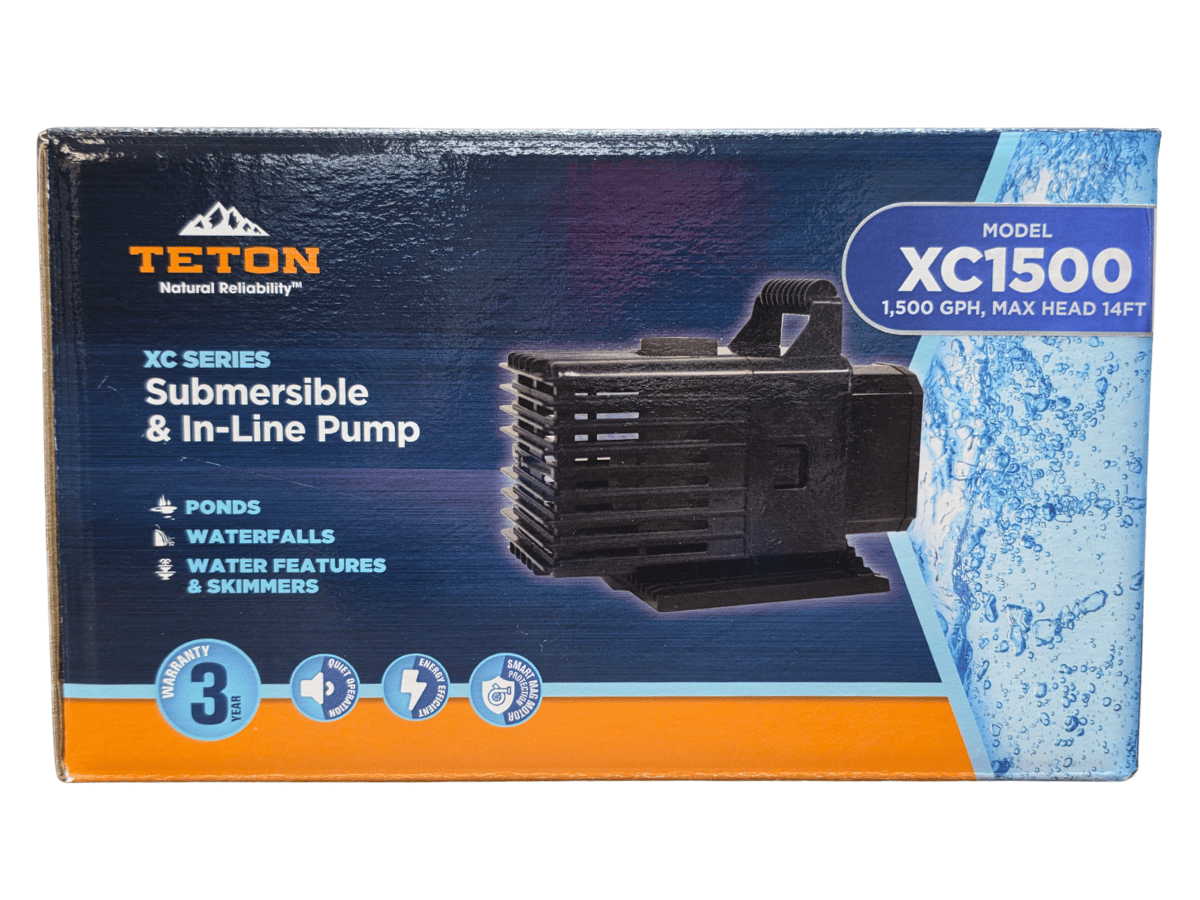

Teton XC1500 Performance Series Pump (Dry-Run Protection)

You Save:

Base price:

Options:

DESCRIPTION

The Teton XC1500 is the entry point for our High-Capacity / Performance Series. Pushing a powerful 1,500 gallons per hour, this pump is designed for large-scale water features that require consistent, high-volume flow and superior vertical lift. Whether you are powering a massive Universal Rocks swimming pool waterfall or a large backyard koi pond, the XC1500 provides professional-grade reliability.

The XC series is distinguished by its advanced SmartMag Motor Protection. This intelligent internal sensor detects if the pump is running dry or if the impeller is jammed, automatically shutting down the power to prevent motor burnout. Once the issue is resolved and the pump cools, it restarts automatically—giving you ultimate peace of mind for your investment.

KEY FEATURES

Dry-Run Protection: Built-in SmartMag technology automatically protects the motor from damage if water levels drop.
Simple Setup: Standard 120V power cord for easy "plug-and-play" installation (not solar powered).
Performance Grade: Designed for 24/7 continuous duty in large ponds, skimmers, and waterfall kits.
Dual Installation: Fully submersible or can be installed "in-line" as an external pump.
Whisper Quiet: Despite its high output, the magnetic drive motor operates with minimal noise.
Peace of Mind: Thermally protected and backed by a 3-year manufacturer warranty.

SPECIFICATIONS

Max Flow Rate: 1,500 GPH
Max Head Height: 15 ft
Power: 120V / 45 Watts (High Efficiency)
Water Outlet (Discharge): 1" Female Pipe Thread (FPT)
Inlet Connection: 1" Female Pipe Thread (FPT)
- Note: This unit features threaded ports for secure plumbing; additional hose adapters or fittings are not included.
Cord Length: 32 ft (Extra-long for large installations)
Included Accessories: Includes a robust removable pre-filter screen.

WORKS WITH

This pump is recommended for the following Universal Rocks features:

Waterfalls: LEW-003, LEW-002, LEW-006-CORNER, CAVE-004, LW-003

WHICH PUMP IS RIGHT FOR ME?

Use our interactive pump performance curve calculator to find the perfect Teton Mag-Drive pump for your project. By comparing Gallons Per Hour (GPH) against Total Dynamic Head (FT), you can ensure your fountain, pond, or aquarium receives the optimal flow rate for your specific height requirements.

CHECK YOUR REQUIREMENTS

Required Flow (GPH)

Head Height (FT)

🔍 Pro Tip: Click any pump name in the legend above to toggle that specific curve on or off. The graph will automatically zoom to fit the remaining pumps!

📊 Precision View: Hover your mouse (or tap on mobile) over any dot to see the exact GPH rating at that head height.
